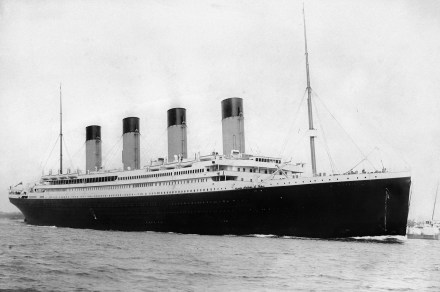

The Olympic-class ocean liners had been a number of the largest and most luxurious passenger ships of their time. The Olympic, Titanic, and Britannic had been constructed by Harland & Wolff for White Star Liners throughout the first half of the 1910s. Whereas the sister ships stood aside due to their immense measurement and lavish lodging, all of them had highly effective steam engines. For the reason that Titanic is probably the most well-known of the ships as a result of it sank (to not point out the James Cameron movie), we’ll cowl how its engine labored earlier than it sunk.
And should you’re a visible particular person? One useful Redditor not too long ago posted the video under to the subreddit r/educationalgifs. It’s a part of an extended take a look at the Titanic from Jared Owen, who has obtained some fairly unbelievable 3D animations.
As an alternative of selecting to go together with a turbine engine, which was discovered on the Titanic’s principal rival, the Cunard, Harland & Wolff determined to stay with two triple-expansion steam engines. The triple-expansion steam engines run on steam (duh) from the burning of coal within the ship’s boilers. As soon as the steam is made, it has a maze to run via earlier than turning into energy to maneuver the ship.
As soon as the steam exits the boilers, it travels via steam traces towards the triple-expansion steam engines. The steam enters the primary cylinder that’s known as the high-pressure cylinder at 215 PSI to behave on each side of the piston to push it up and press it down. As soon as it’s carried out on the first cylinder, it strikes on to the intermediate cylinder at a lowered stress of 78 PSI to, as soon as once more, transfer the piston up and down. Then, the steam is routed to 2 low-pressure cylinders at 24 PSI to, you guessed it, transfer the pistons up and down.
After transferring pistons up and down and dropping stress all through the journey, the steam exits the low-pressure cylinders at 9 PSI towards considered one of two almost 24-foot diameter propellors. Exhaust steam escaping from the triple-expansion engines additionally powers a Parsons’ turbine to drive a central 16.5-foot diameter central propeller. The propellers triggered the Titanic to maneuver.
It’s extremely superior tech, and that is only a general overview of what’s occurring. If you happen to’re a numbers sort of particular person, the triple-expansion steam engines had been good for 15,000 horsepower every when working at 75 revs per minute. The Titanic’s whole powerplant was rated at roughly 59,000 horsepower, permitting the 52,000-ton ship to journey at as much as 23 knots.
Whereas making that type of energy from steam is spectacular, the best way the Titanic ensured zero waste was simply as skillful. As soon as the steam exits the Parsons’ turbine, it enters a condenser at 1 PSI. Chilly seawater is introduced into the condenser to chill down the steam, which permits it to go from a gasoline to a liquid to be despatched again to the boilers for use as feed water for one more journey via the complete course of.
The Titanic could also be recognized for sinking, however getting a ship of its measurement transferring on the water with steam was an accomplishment. Fairly frankly, the remainder of the ship was simply as spectacular, and properly price a take a look at the total video from Jared Owen.
